PRODUCTS

Routerbee system is able to install at site in a very short period. Usually it takes less than a day, including the confirmation of system function. The reason why we can do is that we construct the system accompanied with standard devices and application software, as shown bellows.26 systems, including for building, hospitals, laboratories, and schools, are already into operate in Tokyo, Osaka and Fukuoka before 21 May 2012.

.

ƒHardware Devices@„

Device

Use

specification

others

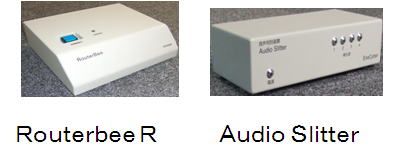

Routerbee-R

Used for main part of site system.

Video data, mouse and keyboard data are transmitted between industrial computer and Node server/Center server, via private network. Alarm signal is also transmitted.



Node server

Installed at anywhere in the private network.

Application software as listed is executed. Windows enbedded is installed.

-  Agent function

-  Data acquisition function

Usually installed beside the center server.

Center server

Used for main part of center system.

Supervisory control function is executed for operator of facilities.

Industrial computer

Audio slitter

Used for a part of center system.

PC which is usually used in internet, is available for supervisory control of facilities, by Routerbee-N.



Routerbee-N

Used for a part of center system.

Message is transmitted to operator, in accordance with occurrence of abnormal state of facilities, by Routerbee-A.



Routerbee-A

Used for a part of system in every sites.

 Message is transmitted to operator, in accordance with occurrence of abnormal state of facilities, by Routerbee-A.



VPN router



 To provide virtual private network.








ƒ@Aplication Software@„

Function

specification

others

Routerbee-

platform

Platform provided for Routerbee applications.



AGT

Screen monitor of industrial computer is operated automatically, in order to control facilities.



SVC

Supervisory control function.



DA

Screen monitor of industrial computer is operated automatically in order to acquire data of facilities.



Scenario maintenance

Tool by interactive way is provided, in order to generate the scenario for DA and AGT.



Routerbee-A

Driver

 Service program for Routerbee-A. Audible signals are analyzed by FFT methods.

Routerbee-A is needed.
